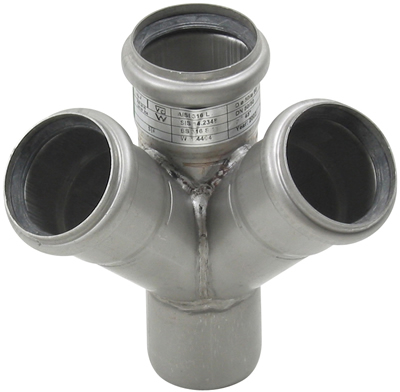

BLUCHER Stainless Steel 2" 45 Degree Double Wye (90 Offset) 316L

Model No.             Global Part #       D     D1       X            X2      X3        X5

OW2x2-45-316     837.050.050S     2"     2"     4 7/8"     2 1/4"     2"    2 13/16"

PIPE AISI Type 316L (standard) stainless steel pipe system, with Push-Fit socket connections with EPDM (standard) sealing ring. All BLÜCHER PIPE to be treated with pickling and passivation finish process.
Stainless Steel AISI 316L / EN 1.4404
